FLOW CONTROL VALVES

« BACK

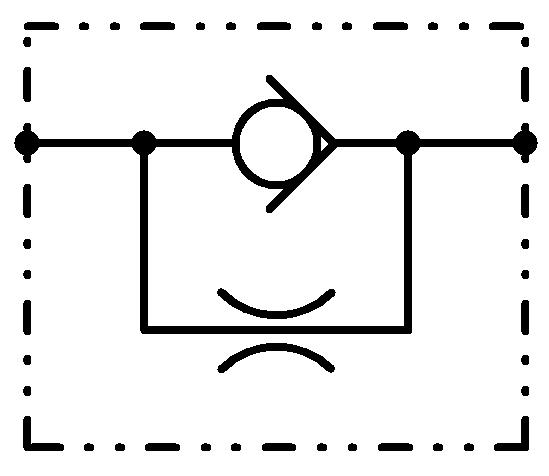

RESTRICTOR VALVES	FIXED TYPE FREE REVERSE FLOW	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VSF 38	G 3/8	40	210	2.05.00
	VSF 120	G 1/2	50	210	2.05.10
	VSF/UD 14	G 1/4	10	350	2.12.00

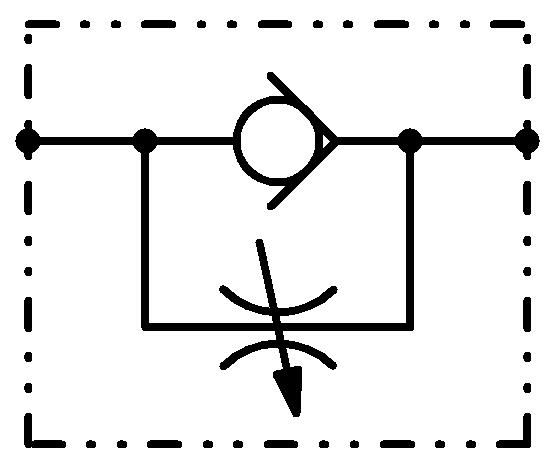

	ADJUSTABLE TYPE FREE REVERSE FLOW	PORT SIZE	Q max (l/min)	P max (bar)	Page
	SR 1	G 1/4	18	350	2.01.00
	SR 2	G 3/8	30	350	2.01.00
	SR 3	M18 x 1,5	30	350	2.01.00
	SR 4	G 1/2	50	300	2.01.00
	SR 5	G 3/4	90	300	2.01.00
	SR 6	G 1	120	300	2.01.00
	VSR/PIL 8	M8	3	350	2.06.00
	TE/PIL-STVR	M8	3	350	2.06.05
	TE/PIL-STVRL	M8	3	350	2.06.05
	ADJUSTABLE TYPE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	SRB 1	G 1/4	18	350	2.02.00
	SRB 2	G 3/8	30	350	2.02.00
	SRB 3	M18 x 1,5	30	350	2.02.00
	SRB 4	G 1/2	50	300	2.02.00
	SRB 5	G 3/4	90	300	2.02.00
	VSB/PIL 8	M8	3	350	2.06.01

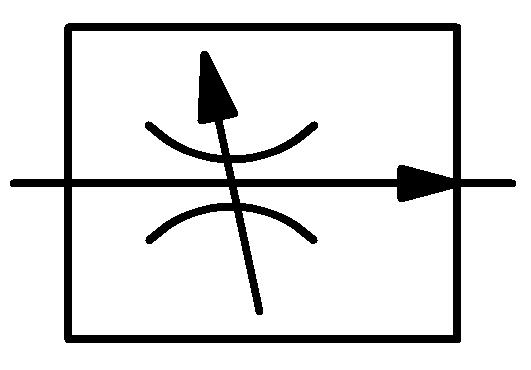

REGOLATORI DI FLUSSO	TWO WAY PRESSURE COMPENSATED	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VSC/I 38	INSERTO	12	210	2.03.00
	VRF/C/2V 14	G 1/4	25	210	2.03.80
	VRF/C/2V 38	G 3/8	25	210	2.03.80
	VRF/C/2V 120	G 1/2	55	210	2.03.81
	VRF/C/2V 340	G 3/4	90	210	2.03.81
	VRF/C/2V 1000	G 1	190	210	2.03.81

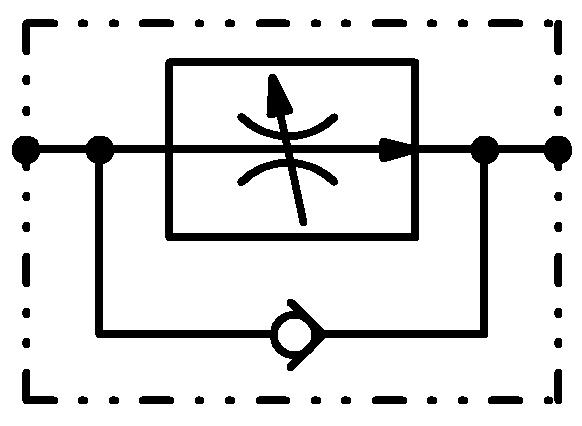

	TWO WAY PRESSURE COMPENSATED WITH FREE REVERSE FLOW	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VRF/C/2V/RL 38	G 3/8	30	210	2.03.90
	VRF/C/2V/RL 120	G 1/2	55	210	2.03.90
	VRF/C/2V/RL 340	G 3/4	90	210	2.03.90
	VRF/C/2V/RL 1000	G 1	190	210	2.03.91

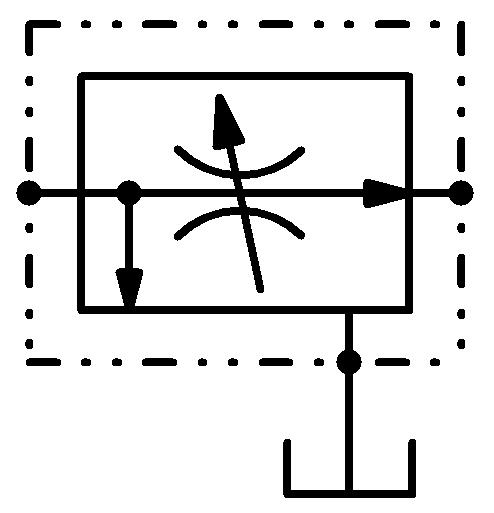

	THREE WAY PRESSURE COMPENSATED	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VRF/C/3V 14	G 1/4	25	210	2.04.00
	VRF/C/3V 38	G 3/8	40	210	2.04.00
	VRF/C/3V 120	G 1/2	90	210	2.04.01
	VRF/C/3V 340	G 3/4	150	210	2.04.01
	VRF/C/3V 1000	G 1	280	210	2.04.02

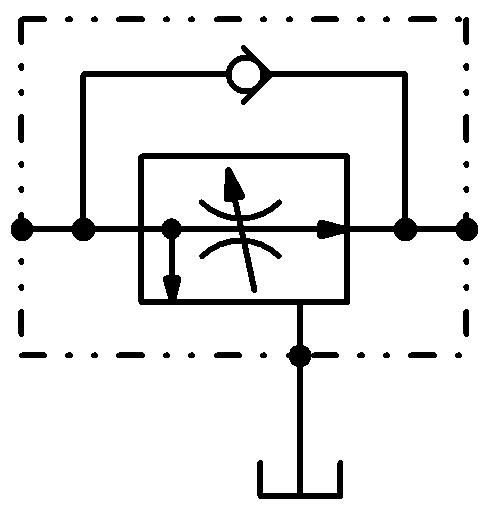

	THREE WAY PRESSURE COMPENSATED WITH FREE REVERSE FLOW	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VRF/C/3V/RL 38	G 3/8	55	210	2.04.10
	VRF/C/3V/RL 120	G 1/2	90	210	2.04.10
	VRF/C/3V/RL 340	G 3/4	150	210	2.04.10

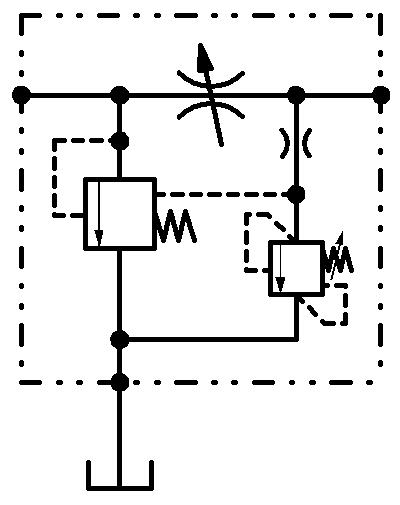

	THREE WAY PRESSURE COMPENSATED WITH PRIORITY RELIEF	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VRF/C/3V 120/VMP15	G 1/2	90	210	2.04.20
	VRF/C/3V/IH 1000/VMP15	G 1	280	210	2.04.22





ADJUSTABLE COMPENSATED LOAD CONTROL VALVES	ONLY INSERT	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VCD/CR 14	G 1/4	15	300	2.03.50
	VCD/CR 38	G 3/8	35	300	2.03.50
	VCD/CR 120	G 1/2	65	300	2.03.50
	VCD/CR 340	G 3/4	150	300	2.03.50
	VCD/CR 1000	G 1	250	250	2.03.50
	VCD/CR 1140	G 1-1/4	400	250	2.03.50


	WITH FEMALE-FEMALE COLUMN	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VCD/CR 14 - FF	G 1/4	15	300	2.03.50
	VCD/CR 38 - FF	G 3/8	35	300	2.03.50
	VCD/CR 120 - FF	G 1/2	65	300	2.03.50
	VCD/CR 340 - FF	G 3/4	150	300	2.03.50
	VCD/CR 1000 - FF	G 1	250	250	2.03.50
	VCD/CR 1140 - FF	G 1-1/4	400	250	2.03.50
	WITH FEMALE-MALE COLUMN	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VCD/CR 14 - FM	G 1/4	15	300	2.03.50
	VCD/CR 38 - FM	G 3/8	35	300	2.03.50
	VCD/CR 120 - FM	G 1/2	65	300	2.03.50
	VCD/CR 340 - FM	G 3/4	150	300	2.03.50
	VCD/CR 1000 - FM	G 1	250	250	2.03.50
	VCD/CR 1140 - FM	G 1-1/4	400	250	2.03.50
