OVERCENTRE VALVES

« BACK

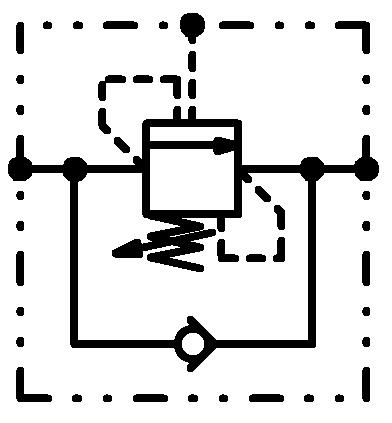

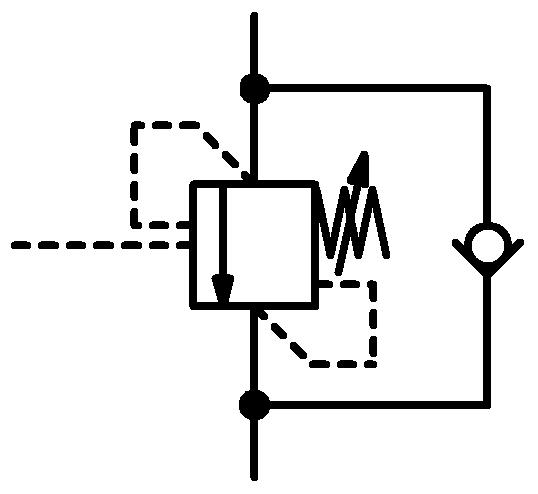

OVERCENTRE VALVES	CARTRIDGE TYPE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VBSE/TR/C 30	CARTRIDGE	60	350	5.33.00
	VBSE/NV/C 90	CARTRIDGE	90	350	5.36.00
	VBSE/TE/C 150	CARTRIDGE	150	350	5.39.00

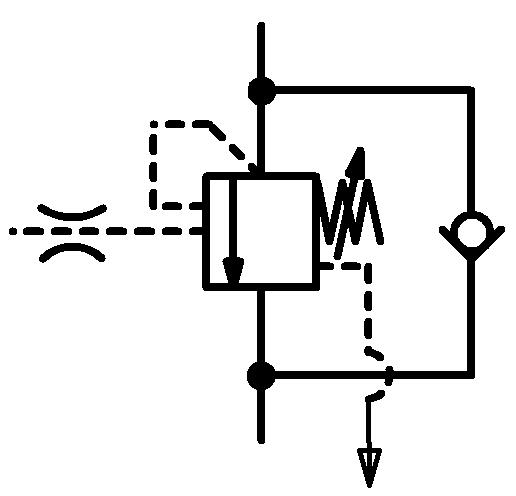

	CARTRIDGE TYPE COMPENSATED TO BACK PRESSURE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VBSE/TR/C 30/CC	CARTRIDGE	60	350	5.35.00
	VBSE/NV/C 90/CCP	CARTRIDGE	90	350	5.38.00
	VBSE/TE/C 90/CCP	CARTRIDGE	150	350	5.41.00






	SINGLE PILOT ASSISTED OVERCENTRE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VBBS/SC/PI 120	G 1/2	80	350	5.11.12
	A-VBSE/SO 14	G 1/4	40	350	5.30.00
	A-VBSE/SO/PI 14	G 1/4	40	350	5.30.10
	A-VBSE/FL1/SO 14	FLANGIABILE	40	350	5.30.15
	A-VBSE/FL2/SO 14	FLANGIABILE	40	350	5.30.20
	A-VBSE/FL2/SO 14/B	FLANGIABILE	40	350	5.30.21
	A-VBSE/TR ...	G 1/4 - G 3/8 - G 1/2	60	350	5.33.10
	A-VBSE/TR/PI ...	G 1/4 - G 3/8 - G 1/2	60	350	5.33.20
	VBSE/TR/FL 38	FLANGIABILE	60	350	5.33.40
	A-VBSE/FL1/TR ...	FLANGIABILE	60	350	5.33.45
	A-VBSE/TR/FL/SAE 120	FLANGIABILE	60	350	5.33.47
	A-VBSE/FL1/TR/PI ...	FLANGIABILE	60	350	5.33.50
	A-VBSE/FL2/TR/PI ...	FLANGIABILE	60	350	5.33.51
	A-VBSE/FL2/NV/PI 120	FLANGIABILE	90	350	5.36.50
	A-VBSE/TE/PI ...	G 1/2 - G 3/4	150	350	5.39.50

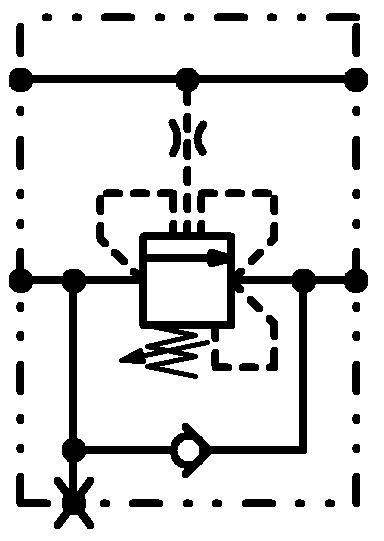

	SINGLE PILOT ASSISTED OVERCENTRE COMPENSATED TO BACK PRESSURE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VBSE/TR/FL 38/CC	FLANGIABILE	40	350	5.35.08
	A-VBSE/TR/PI .../CC	G 1/4 - G 3/8 - G 1/2	60	350	5.35.10
	VBSE/TR/OP 120/CC	G 1/2	50	350	5.35.15
	A-VBSE/FL1/TR/PI .../CC	FLANGIABILE	60	350	5.35.20
	A-VBSE/FL2/TR/PI .../CC	FLANGIABILE	60	350	5.35.30
	VBSE/NV/OP 340/CCP	G 3/4	100	350	5.38.15
	A-VBSE/TE/PI .../CCP	G 1/2 - G 3/4	150	350	5.41.50
	A-VBSE/TE/FL/PI .../CCP	FLANGIABILE	150	350	5.41.51

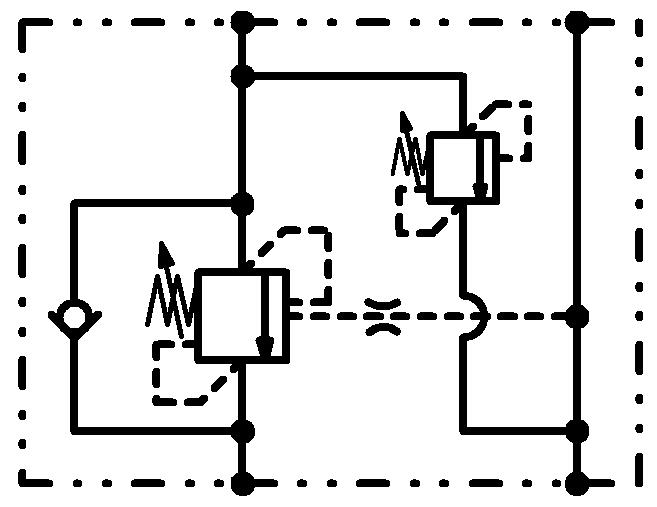

	SINGLE PILOT ASSISTED OVERCENTRE WITH RELIEF	PORT SIZE	Q max (l/min)	P max (bar)	Page
	A-VBSE/TR 38/VMP5	G 3/8	40	350	5.33.12
	A-VBSE/TR/PI 38/VMP5	G 3/8	40	350	5.33.30
	A-VBSE/TR/VMP 38	G 3/8	40	350	5.33.60

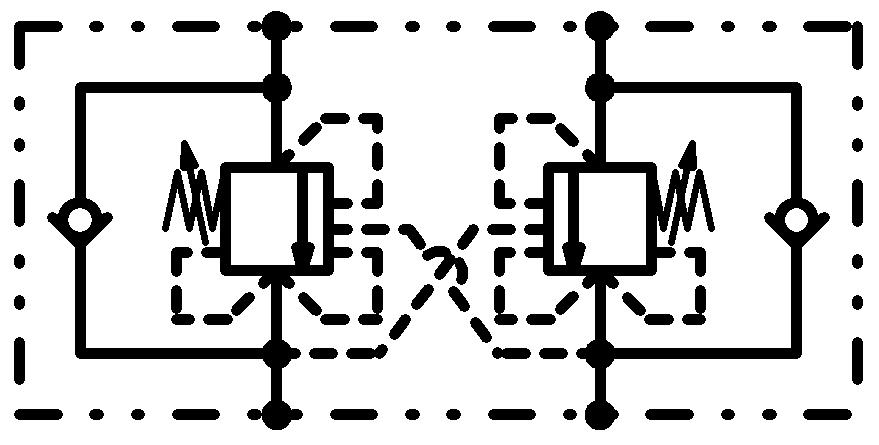

	DUAL PILOT ASSISTED OVERCENTRE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	VBDL/SC 38	G 3/8	40	350	5.12.00
	VBDL/SC/FL 38	FLANGIABILE	40	350	5.12.30
	VBDL/SC 120	G 1/2	90	350	5.12.02
	VBDL/SC/4F 120	G 1/2	90	350	5.12.02A
	VBDL/SC/FL 120	FLANGIABILE	90	350	5.12.32
	A-VBDE/SO 14	G 1/4	40	350	5.31.00
	A-VBDE/FL/SO 14	FLANGIABILE	40	350	5.31.10
	A-VBDE/FL1/SO 14	FLANGIABILE	40	350	5.31.20
	A-VBDE/TR ...	G 3/8 - G 1/2	60	350	5.34.00
	A-VBDE/FL/TR ...	FLANGIABILE	60	350	5.34.20
	A-VBDE/FL1/TR ...	FLANGIABILE	60	350	5.34.21
	A-VBDE/TR/IL 120	G 1/2	80	350	5.34.30
	A-VBDE/FL2/NV 120	FLANGIABILE	90	350	5.37.50
	VBDE/TE/PI 120	G 1/2	150	350	5.40.00
	VBDE/TE/L 340	G 3/4	150	350	5.40.05
	VBDE/TE/FL ...	FLANGIABILE	150	350	5.40.10
	DUAL PILOT ASSISTED OVERCENTRE COMPENSATED TO BACK PRESSURE	PORT SIZE	Q max (l/min)	P max (bar)	Page
	A-VBDE/TR .../CC	G 3/8 - G 1/2	60	350	5.35.50
	VBDE/TR/OP 120/CC	G 1/2	50	350	5.35.55
	A-VBDE/FL/TR .../CC	FLANGIABILE	60	350	5.35.60
	A-VBDE/FL1/TR .../CC	FLANGIABILE	60	350	5.35.70
	VBDE/NV/OP 340/CCP	G 3/4	100	350	5.38.55
	VBDE/TE/FL .../CCP	FLANGIABILE	150	350	5.41.70
	VBDE/TE/L 340/CCP	G 3/4	150	350	5.60.00

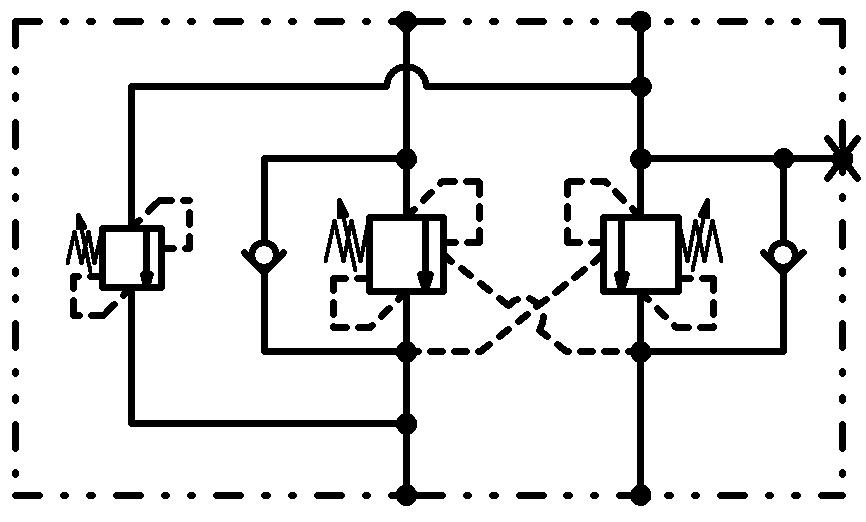

	DUAL PILOT ASSISTED OVERCENTRE WITH RELIEF	PORT SIZE	Q max (l/min)	P max (bar)	Page
	A-VBDE/TR/CV 38/VMP5	G 3/8	40	350	5.34.02
	A-VBDE/TR/CV 38/VMP5/1A	G 3/8	40	350	5.34.02.1A
	A-VBDE/TR/CV 120/VMP5	G 1/2	60	350	5.34.03
	VBDE/TR/VMP 38	G 3/8	50	350	5.34.10
	A-VBDE/TR/FL 120/VMP5	FLANGIABILE	60	350	5.34.22
	VBDE/TR/FL 120/VMP5	FLANGIABILE	60	350	5.34.25

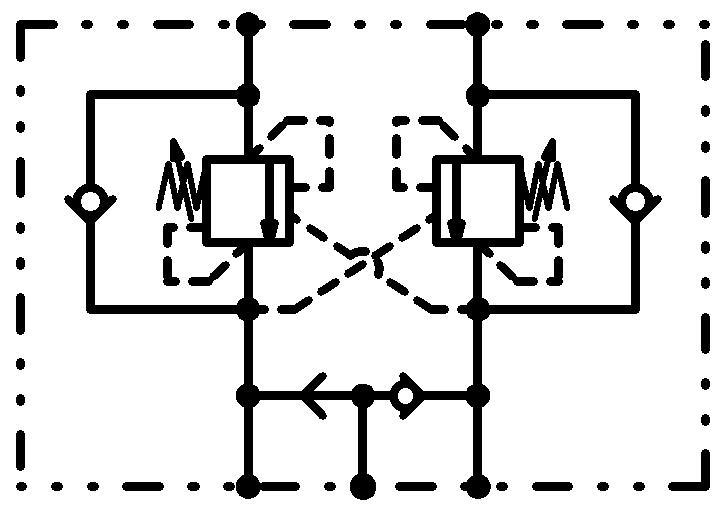

	DUAL PILOT ASSISTED OVERCENTRE WITH BRAKE REALASE PORT	PORT SIZE	Q max (l/min)	P max (bar)	Page
	A-VBDE/TR/SF ...	G 3/8 - G 1/2	60	350	5.34.05
