CHECK VALVES



CHECK VALVES BALL TYPE
 PORT SIZE Q max
(l/min)		 P max
(bar)
Page

VR 1 G 1/4 18 350 1.01.00
VR 2 G 3/8 30 350 1.01.00
VR 3 M 18 x 1.5 30 350 1.01.00
VR 4 G 1/2 50 300 1.01.00
VR 5 G 3/4 90 300 1.01.00
POPPET TYPE
 PORT SIZE Q max
(l/min)		 P max
(bar)		 Page
VRC 1 G 1/4 18 350 1.02.00
VRC 2 G 3/8 30 350 1.02.00
VRC 3 M 18 x 1.5 30 350 1.02.00
  VRC 4 G 1/2 50 300 1.02.00
  VRC 5 G 3/4 90 300 1.02.00
VRC 6 G 1 120 300 1.02.00
CARTRIDGE
 PORT SIZE Q max
(l/min)		 P max
(bar)		 Page

VRCC 18

CARTUCCIA

30

350

 1.02.80

VRCC 38

CARTUCCIA

30

350

 1.03.00

VRCC 120

CARTUCCIA

60

350

 1.04.00

VRCC 340

CARTUCCIA

80

350

 1.05.00

VRCC-08/SAE

CARTUCCIA

50

350

 1.05.10

VRCC-12/SAE

CARTUCCIA

120

350

 1.05.12

VR/IN 14

A inserto

15

350

 1.26.00

VR/IN 38

A inserto

30

350

 1.26.00

VR/IN 120

A inserto

50

350

 1.26.00

VR/IN 340

A inserto

80

350

 1.26.00
PILOT OPERATED CHECK VALVES POPPET TYPE PORT SIZE Q max
(l/min)		 P max
(bar)		 Page



VRCC/N 38/P

CARTUCCIA

30

350

 1.05.80

VBP/SE/C 40

CARTUCCIA

40

315

 1.06.00

VBP/SE/C 90

CARTUCCIA

90

350

 1.07.01

VBP/SE/C 90/PE

CARTUCCIA

90

350

 1.07.01

VRP/C 1

G 1/4

18

350

 1.08.00

VRP/C 2

G 3/8

30

310

 1.08.00

VRP/C 4

G 1/2

50

310

 1.08.00

VRP/C 5

G 3/4

90

300

 1.08.00
VRP/C 6

G 1

150

300

 1.08.00




PILOT OPERATED CHECK VALVES
 POPPET TYPE PORT SIZE Q max
(l/min)		 P max
(bar)		 Page

VRP/SE/C 38

G 3/8

30

350

 1.09.00

VRP/SE/C 120

G 1/2

50

350

 1.09.00

VRP/SE/C 340

G 3/4

90

350

 1.09.00

VRP/SE/FL 38

FLANGIABILE

30

350

 1.10.00

VRP/SE/FL 120

FLANGIABILE

50

350

 1.10.00

VRP/SE/FL 340

FLANGIABILE

90

350

 1.10.00

VRP/SE/FL/B 38

FLANGIABILE

30

350

 1.10.01

VRP/SE/FL/B 120

FLANGIABILE

50

350

 1.10.01

VRPD/AF 38/NR1

FLANGIABILE

30

350

 1.10.50

VBP/C40/FL 38

FLANGIABILE

40

250

 1.11.00

VBP/C40/FL/LN38

FLANGIABILE

40

350

 1.11.10

VRP/S/C 14

G 1/4

20

350

 1.12.00


A-VRP/S/C 14

G 1/4

20

350

 1.12.00A


VRP/S/C 38

G 3/8

30

350

 1.13.00

VRP/SE/DL 14

G 1/4

20

350

 1.13.10

VRP/SE/DL 38

G 3/8

35

350

 1.13.10

VRP/SE/DL 120

G 1/2

50

350

 1.13.10
DUAL PILOT OPERATED CHECK VALVES POPPET TYPE PORT SIZE Q max
(l/min)		 P max
(bar)		 Page

OVRPDL 14 G 1/4 20 350 1.20.00
OVRPDL 38 G 3/8 30 350 1.20.00
VRP/DE/L 14 G 1/4 18 350 1.21.00
VRP/DE/L 120 G 1/2 45 350 1.21.01
VRP/DE/L 340 G 3/4 90 350 1.21.01
VRPD/C 38 G 3/8 30 350 1.22.00
VRPD/C 120 G 1/2 50 350 1.22.00
  VRPD/C 340 G 3/4 90 350 1.22.00
  VRPD/AF 38 FLANGIABILE 30 350 1.23.00
  VRPD/AF 120 FLANGIABILE 50 350 1.23.00
  VRPD/AF 340 FLANGIABILE 90 350 1.23.00
  VRPD/AF/2F 38 FLANGIABILE 30 350 1.23.01
  VRP/DE/C 08/SAE FLANGIABILE 10 315 1.23.20

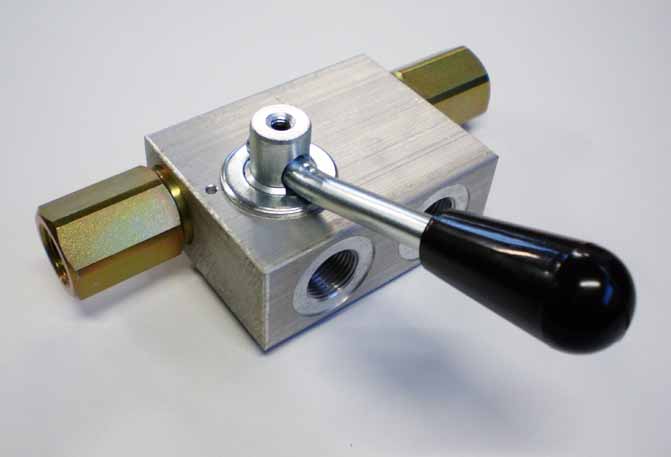

PILOT OPERATED CHECK VALVES WITH MANUAL SHUT-OFF BALL TYPE PORT SIZE Q max
(l/min)		 P max
(bar)		 Page

VUPR/D 14

G 1/4

20

350

 1.14.00

VUPR/S 14

G 1/4

20

350

 1.14.01

VUPR/D 38

G 3/8

30

350

 1.15.00

VUPR/S 38

G 3/8

30

350

 1.15.01

VUPR/D 120

G 1/2

60

350

 1.15.10

VUPR/S 120

G 1/2

60

350

 1.15.11

VUPR/D R14

G 1/4

20

350

 1.16.00

VUPR/S R14

G 1/4

20

350

 1.16.01

VUPR/FL/D 38

FLANGIABILE

30

350

 1.18.00

VUPR/FL/S 38

FLANGIABILE

30

350

 1.18.01

VUPR/SE/FL 14

FLANGIABILE

20

350

 1.19.00

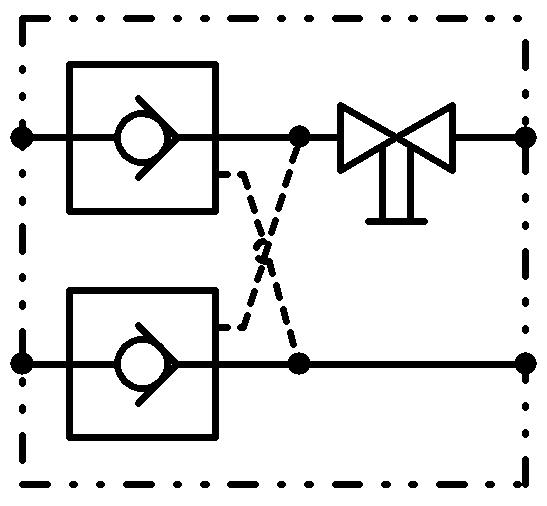

DUAL PILOT OPERATED CHECK VALVES WITH MANUAL SHUT-OFF BALL TYPE PORT SIZE Q max
(l/min)		 P max
(bar)		 Page

VUPR/DE/D 38 G 3/8 30 350 1.17.00
VUPR/DE/S 38 G 3/8 30 350 1.17.01
